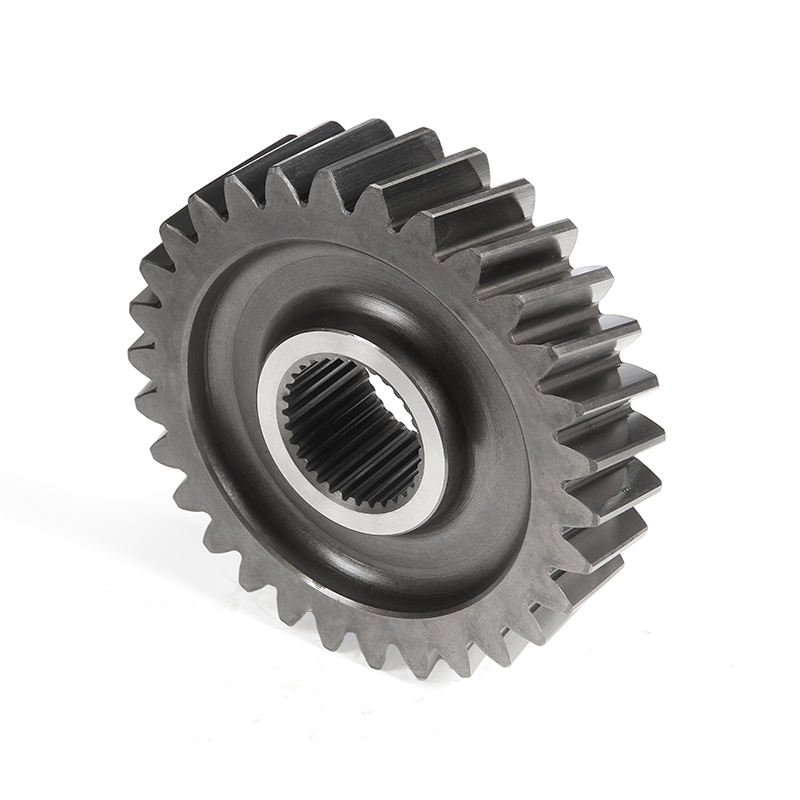

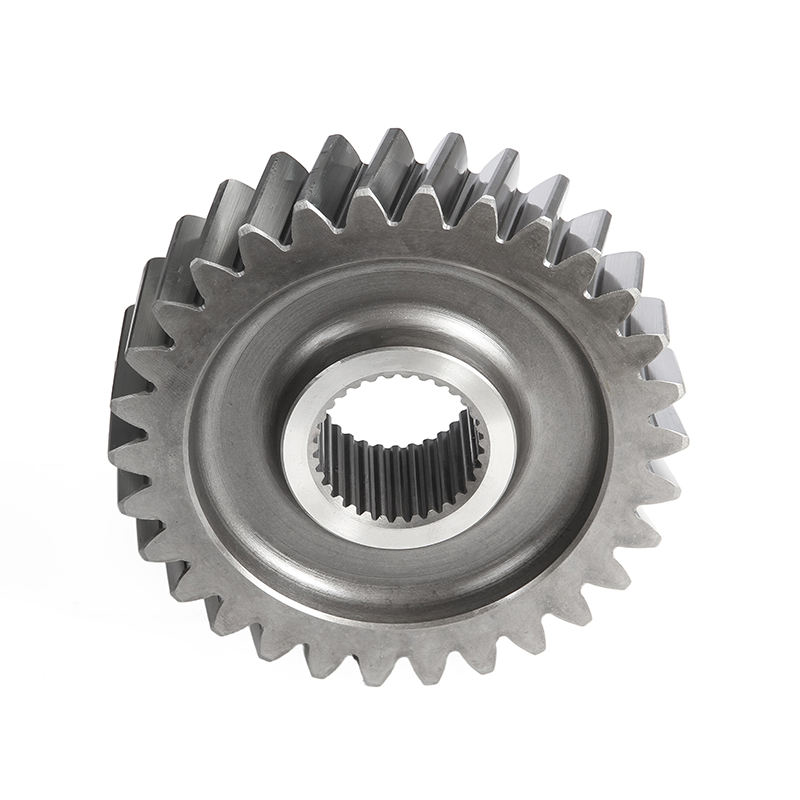

Helical gears are a type of cylindrical gear with teeth cut at an angle to the gear axis, forming a helix shape. This design allows for smoother and quieter operation compared to spur gears. Helical gears can transmit motion and power between parallel or crossed shafts with higher load capacity and better efficiency. They are widely used in applications that require high speed, high torque, and low noise.
Material |
Alloy steel (e.g., 20CrMnTi, 40Cr, 42CrMo), carbon steel, or stainless steel |
Surface Hardness |
HRC 58–62 (after heat treatment) |
Core Hardness |
HRC 30–40 |
Gear Type |
Helical (available in left-hand or right-hand helix) |
Module Range |
M0.5 – M12 (customized upon request) |
Accuracy Grade |
GB/T 10095 Grade 6–7 or per customer requirement |
Dimensional Tolerance |
±0.01 mm for critical dimensions |
Tooth Surface Roughness |
Ra ≤ 0.8 μm (after grinding) |
Heat Treatment |
Carburizing + quenching & tempering or overall quenching & tempering |
Surface Treatment |
Black oxide, phosphating, nitriding, zinc plating, or custom coating |
Manufacturing Process |
CNC hobbing, shaping, gear grinding, and precision inspection |
Quality Inspection |
100% tested for runout, tooth profile, and hardness |
Maximum Outer Diameter |
Up to Ø800 mm (customized size available) |
Material selection: Alloy steel, carbon steel, stainless steel, or brass
Forging or bar cutting
Rough machining (turning, milling)
Gear hobbing or shaping (using CNC gear hobbing machines)
Heat treatment for hardness and durability
Grinding and surface finishing for precision
Quality inspection (gear tester, hardness, runout checking)
Automotive transmissions and differentials
Industrial gearboxes and reducers
Robotics and automation equipment
Machine tools and CNC machinery
Aerospace and marine drives
Agricultural and construction machinery
Smooth and quiet operation due to gradual tooth engagement
Higher load-carrying capacity than spur gears
Longer service life and reduced vibration
Suitable for high-speed and high-torque transmission
Excellent efficiency and precision with CNC machining
Each unit is individually placed in an anti-static bag, then packed into cartons, and finally secured on wooden pallets for bulk shipments.
Shipping:
Domestic: Delivered via SF Express within 2–3 days, with tracking available.
Export: FOB Ningbo/Shanghai; delivery time 15–20 days by sea, or 3–5 days by air via DHL/FedEx
24-hour technical support via phone (+86-17681682039) or email ([email protected]). Free replacement for non-conforming products within 30 days of receipt.
· Do you supply components to major OEMs and Tier 1 companies?
Yes, we supply components to OEMs such as Chery and Wanliyang.”
·What materials are used in your products?
We use high-quality steel or alloy materials suitable for the specific application.
·Can you customize the products?
Yes, we offer OEM and contract manufacturing to meet your requirements.
·What is the standard delivery time?
Domestic: 2–3 days with tracking.
Export: 15–20 days by sea, 3–5 days by air.
·How are the products packaged?
Each unit is carefully packed, usually with protective bags, cartons, and pallets for bulk orders
·Are your products tested for quality?
Yes, all products undergo strict quality inspection, including dimensional checks and surface treatment verification.
·Do you provide technical support?
Yes, our team can assist with installation guidance, compatibility questions, and process recommendations.
·What is the warranty or service policy?
Standard warranty and after-sales support are provided; details depend on the product type.
We supply stamped and machined parts like pistons, clutch flanges, oil pans, planetary assemblies for transmissions and engines.
